Audio booths: Planning

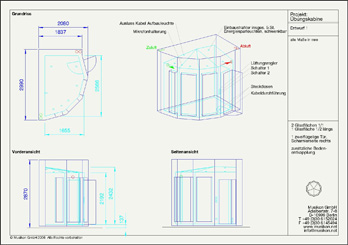

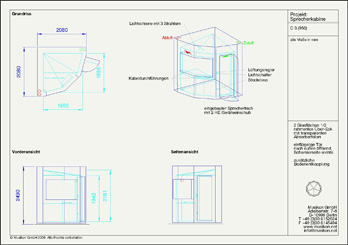

Planning sheets show the floor plan and elevations for a design, and document the position of the
- Window(s)
- Door(s)
- Ventilation units (with direction of air flow)
- Cable duct(s)
- Wall sockets
- Lighting
and other features.
To enlarge (pdf) click
here.
To enlarge (pdf) click
here.
